2023 Harley-Davidson Sportster S Featured
Ready to Outperform the Competition ???
Stock #PB312964
- Status:New
- Vehicle:2023 Harley-Davidson Sportster S
- VIN:1HD1ZC414PB312964
- Model Number:RH1250S
- Mileage:7 miles
- Color:Gray Haze
- Stock Number:PB312964
- Title:Clear
- Location:Harley-Davidson of Waco
- Warranty:Manufacturer's w/ Extended Available
AUDIO & COMMUNICATION
- Bluetooth® Audio:Yes
- Mobile App Instrumentation:Yes
BRAKES
- Front Brake Diameter (in):12.6
- Front Brake Diameter (mm):320
- Front Brake Type:Hydraulic Disc
- Rear Brake Diameter (in):10.2
- Rear Brake Diameter (mm):260
- Rear Brake Type:Hydraulic Disc
CONVENIENCE
- Engine Immobilizer Brand:Digitally Encoded Security System™ (DESS)

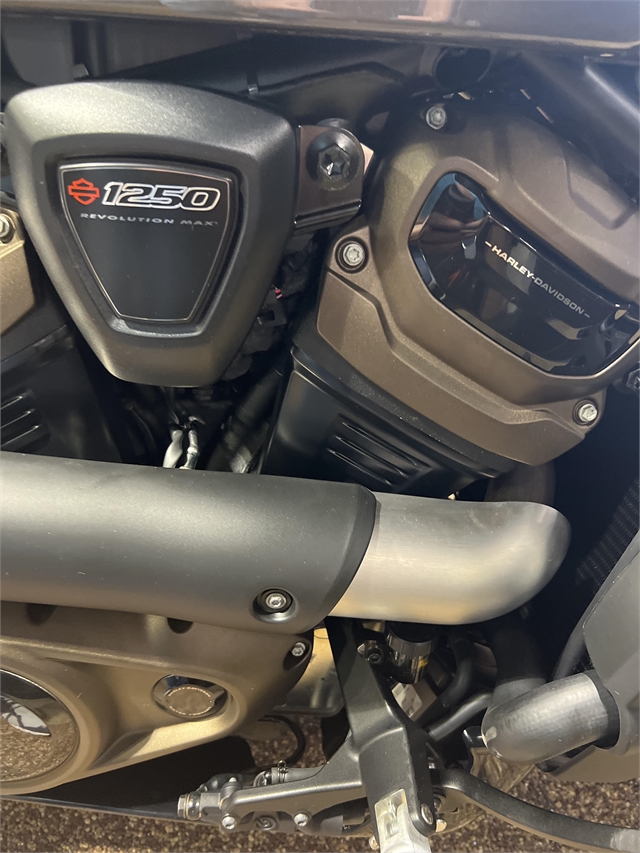

ENGINE
- Bore (in):4.13
- Bore (mm):105
- CAN Liters Per Kilometer (Combined):4.8
- Carburetion Type:Fuel Injected
- Compression Ratio:12
- Cooling:Liquid
- Cylinders:2
- Displacement (cc):1252
- Displacement (ci):76.4
- Engine Brand Name:Revolution® Max
- Engine Stroke:4-Stroke
- Engine Type:V Twin
- Fuel Injector:Yes
- Fuel Requirements:Regular
- Fuel Type:Gas
- Horsepower (bhp):121
- Horsepower (kW):90
- Horsepower RPM:7500
- Starter:Electric
- Stroke (in):2.85
- Stroke (mm):72.3
- Torque (Ft Lbs):94
- Torque (Nm):127
- Torque RPM:6000
- US Miles Per Gallon (Combined):49
- Valve Configuration:DOHC
EXTERIOR
- Belt Guard:Yes
- Exhaust Guard:Yes
- Foot Peg Location:Driver
- Frame:Steel
- Stand Type:Kick
GLASS
- Folding:Yes

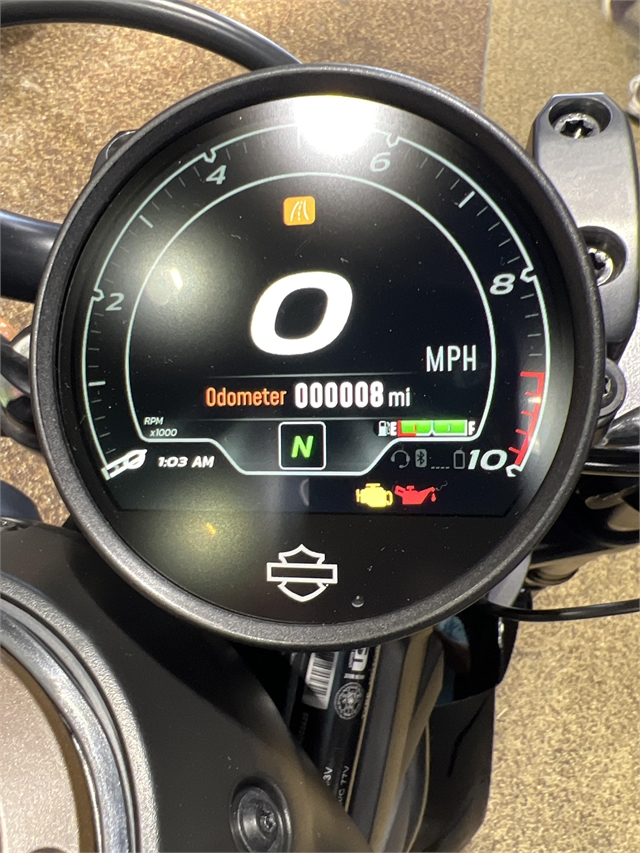

INSTRUMENTATION
- Fuel Level Warning Type:Gauge
- Temperature Warning Type:Light
LIGHTS
- Type:LED
SEATS
- Number Of Seats:1
- Seat Height (in):30.1
- Seat Height (mm):765
- Seat Location:Driver
- Seat Type:One-Piece
STEERING
- Steering Control:Handlebar
SUSPENSION
- Front Adjustable Fork Pre-Load:Yes
- Front Adjustable Rebound Damping:Yes
- Front Suspension Brand Name:Showa®
- Front Suspension Size (in):43
- Front Suspension Size (mm):1092.2
- Front Suspension Type:Inverted Fork
- Number Rear Shock Absorbers:1
- Rear Adjustable Rebound Damping:Yes
- Rear Adjustable Shock / Spring Pre-Load:Yes
- Rear Suspension Brand Name:Showa®
- Rear Suspension Material:Steel
- Rear Suspension Type:Twin Sided Swing Arm
TECHNICAL SPECIFICATIONS
- Dry Weight (kg):221
- Dry Weight (lbs):487
- Engine Displacement to Weight (cc):2.58
- Fuel Capacity (gal):3.1
- Fuel Capacity (l):11.8
- Ground Clearance (in):3.5
- Ground Clearance (mm):88.9
- Length (ft):7.45
- Length (ft/ft):7
- Length (ft/in):5.4
- Length (in):89.4
- Length (mm):2270
- Wet Weight (kg):228
- Wet Weight (lbs):502
- Wheelbase (in):59.8
- Wheelbase (mm):1520
TRANSMISSION
- Gear Ratio (1):12.21
- Gear Ratio (2):9.022
- Gear Ratio (3):6.994
- Gear Ratio (4):5.641
- Gear Ratio (5):4.731
- Gear Ratio (6):4.131
- Number Of Speeds:6
- Primary Drive (Rear Wheel):Belt
- Transmission Type:Manual
WHEELS & TIRES
- Front Tire (Full Spec):Dunlop® Harley-Davidson Series 160/70 TR17 73V
- Front Tire Aspect Ratio:70
- Front Tire Speed Rating:V
- Front Tire Width:160
- Front Wheel Diameter:17
- Rear Tire (Full Spec):Dunlop® Harley-Davidson Series 180/70 R16 77V
- Rear Tire Aspect Ratio:70
- Rear Tire Speed Rating:V
- Rear Tire Width:180
- Rear Wheel Diameter:16
- Tire Brand:Dunlop®
- Wheels Composition:Aluminum
